M15X

Compact, highly versatile enclosure
Incredible fidelity, Impressive output for size
70 X 50 degree confocal elliptic rotatable pattern
2-way Biamplified enclosure
Curved laminar vents for maximum LF extension
LF extension with M118 or M218

OVERVIEW

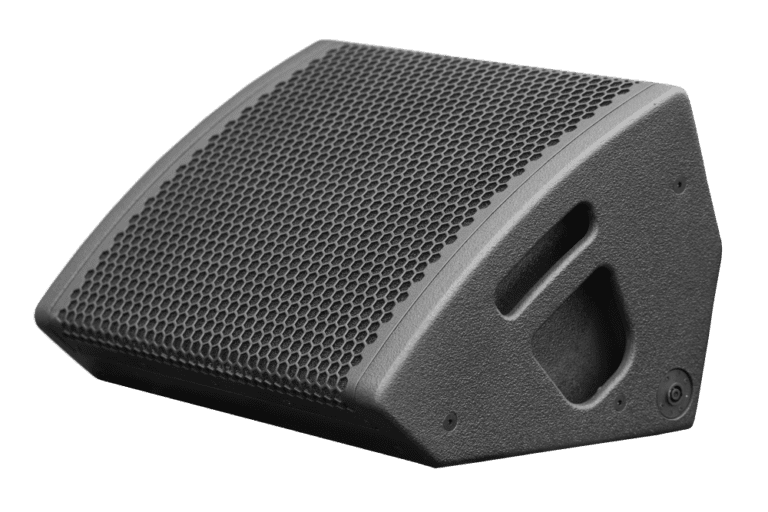

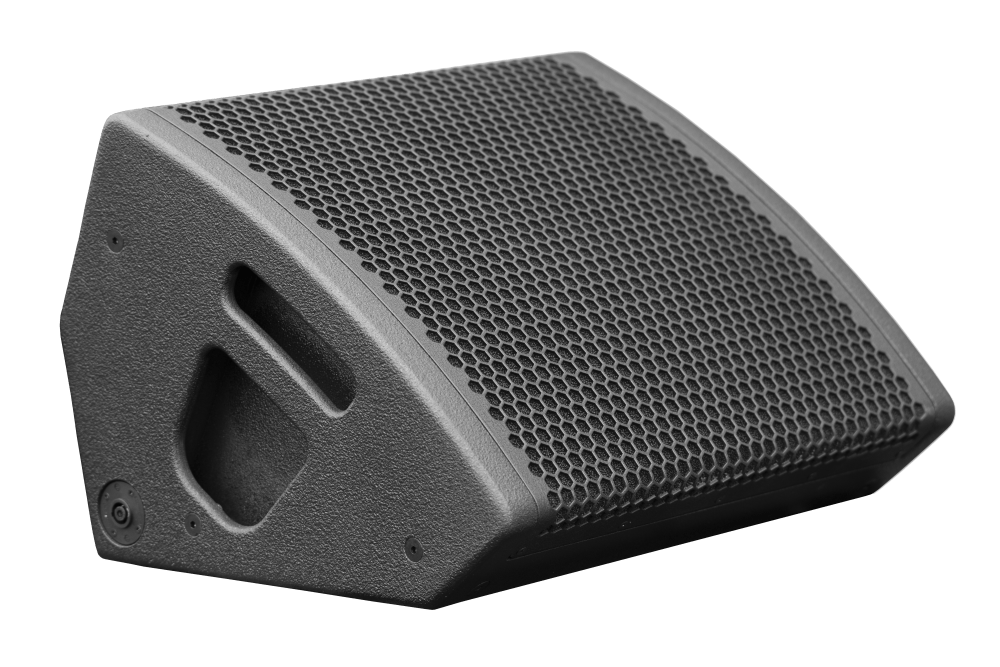

The M15X is a 2-way high performance coaxial stage monitor designed to deliver output levels comparable to the highest output conventional premium 2-way systems, with superior pattern control, directional consistency, and a precise transient response that only a coaxial loudspeaker can provide. This advanced monitor employs an integrated 15” LF and 1.5” exit horn loaded HF coaxial driver design that utilizes a central neodymium magnet.

The precise 50 X 70 (h x v) constant directivity horn delivers and accurate, consistent coverage area, whether on stage, or when deployed for mains PA applications. The M15X horn features one of the proprietary RMS-Acoustics confocal elliptic waveguide shape, made with cutting edge additive manufacturing technology.

When used upright, or on a pole for mains PA applications, the horn will be in the 70 wide X 50 vertical, highly applicable to a wide variety of sound reinforcement applications.

Optimized nonlinear venting improves the low frequency impedance compared to conventional enclosures, while maintaining better mechanical cone control when low frequency extension is required. The result is tight, punchy bass that also goes deep.

The M15X enclosure is crafted from premium multi-ply birch with a finely textured polyurethane finish that is impact and UV resistant. A powder-coated, punched and laser cut steel grille protects the cabinet internal from the elements. Full weather protection and custom color finishes are also available. The weatherized option provides and IP54 rating. Rubber feet recessed in the bottom panel protect the cabinet from scratching and prevent movement on stage.

The optimum processed amplifier solution for the RMS-Acoustics M15X and Maximum performance can be achieved with the RMS-14K and RMS-10K power platforms. Amplifiers from Linea Research may also be used.

SPECIFICATIONS

Frequency Range (-10dB): 45Hz – 20kHz, Assumed 100Hz low pass filter 0dB point taken at 60Hz, Unprocessed
Frequency Response (±3dB): 60Hz – 18kHz, Assumed 100Hz low pass filter 0dB taken at 60Hz, Unprocessed
Electrical Input Connectivity: Dual Neutrik NL4MP connectors, 2 additional NL4MPR Connectors, one on each side
Transducer Power Rating (AES) LF     900W, 1600W, 3200W ( Continuous, Program, Peak)
HF    220W, 400W, 800W (Continuous, Program, Peak)
Long Term Power Rating (IEC) LF    1200W (4500W Peak), 2 hrs, 900W 100Hr
HF    130W (500W Peak), 2 hrs 90W 100Hr
Maximum SPL (1m) 129 dB Continuous, 135dB Peak
Sensitivity (dB SPL, 1W, 1m) 98dB
Nominal Impedance: LF 8 Ohm
HF 8 Ohm
Low Frequency Driver 15in Neodymium cone loudspeaker with 4″ voice coil, shorting ring and high performance convective cooling technology
High Frequency Diaphragm 1.4″ exit Neodymium compression driver diaphragm with 4in voice coil
Enclosure Construction 15 and 18mm Birch Hardwood plywood 1.3mm layers
Suspension Attachment Proprietary internal, captive rigging
12 3/8-16 threaded eye bolts
Finish Black Polyurea/ Urethane with aliphatic UV inhibitor
Grill Details Cold Rolled steel, Epoxy powder coat, Acoustically transparent black foam backing
Dimensions W X D X H: 24.4″ X 15.5″ X 11.7″, 620mm X 394mm X 297mm
Net Weight 70lbs, 31.8kg
Ordering Options M15X, M15Xi (Installation), M15XX (Weatherized), M15XiX (Installation Weatherized)
Color Ordering Options M15X-W (White),  M15X-C (Custom Color)

ACCESSORIES

M15X-HU Horizontal U Bracket for permanent installation
M15XAF M15X Array frame, suspend and splay 2 M15X or M15Xi
POLE-CRANK-RING Crank up pole 35mm + M20 Bottom, 35mm Top Ring Lock, 37in Min- 59in max (Must be ordered in pairs, Black)

AMPLIFIERS

The following amplifier frames can be used achieve performance from the M15X system

MOBILE

RMS-20K

    Mobile or Installation capable Amplifier

  • Maximum output power 4 X 5000 W into 4 Ohm
  • Color TFT Touchscreen Monitoring Display
  • All RMS Loudspeaker Presets
  • Incredibly powerful FIR and IIR DSP capability
  • High Impedance Load Capability 100/70/50/35 V Systems
  • Open platform for any loudspeaker processing for any brand

RMS-14K

    Mobile or Installation Capable Amplifer

  • Maximum output power 4 X 3500 W into 4 Ohm
  • Color TFT Touchscreen Monitoring Display
  • All RMS Loudspeaker Presets
  • Incredibly powerful FIR and IIR DSP capability
  • High Impedance Load Capability 100/70/50/35 V Systems
  • Open platform for any loudspeaker processing for any brand

RMS-10K

    Mobile or Installation Capable Amplifier

  • Maximum output power 4 X 2500 W into 4 Ohm
  • Color TFT Touchscreen Monitoring Display
  • All RMS Loudspeaker Presets
  • Incredibly powerful FIR and IIR DSP capability
  • High Impedance Load Capability 100/70/50/35 V Systems
  • Open platform for any loudspeaker processing for any brand

INSTALLATION

RMS-410Ki

    Installation Specific 4 Channel Amplifier

  • Maximum output power 4 X 2500 W into 4 Ohm
  • Color TFT Touchscreen Monitoring Display
  • All RMS Loudspeaker Presets
  • Incredibly powerful FIR and IIR DSP capability
  • Optional GPIO for Power and Mute control, Fault Monitoring
  • Signal, Loudspeaker, GPIO connections on Euroblocks
  • High Impedance Load Capability 100/70/50/35 V Systems
  • Open platform for any loudspeaker processing for any brand
