RMS-14K
Maximum Output Power 4 X 3500 W into 4 Ω |
Maximum Output Voltage / Current 189 Vpeak / 59 Apeak |
Color TFT Touchscreen Display for Monitoring and Operation |
Incredibly powerful FIR and IIR DSP Capability |
Optional DANTE and AES Inputs |
All Current RMS-ACOUSTICS Loudspeaker Presets |
The RMS-14K has been designed to supply the voltage required by the highest performance loudspeakers in the Pro audio industry. The amp is capable of driving high and low impedance loads, and features a variety of input signal connectivity, making the platform suitable for both live applications and fixed installations.
The platform features a 96kHz sample rate, end to end 64 bit double precision signal processing, low latency DSP with fixed through time (non FIR), advanced FIR capability ( up to 1000 tap per channel), extensive multi Layer IIR filtering, multi stage limiting, robust grouping and management for large system implementations.
The RMS-ACOUSTICS amplifiers contain an extensive library of RMS loudspeaker Presets and System Snapshot configuration, as well as the ability for third party designers or engineers to create their own presets, snapshots, and libraries of both.

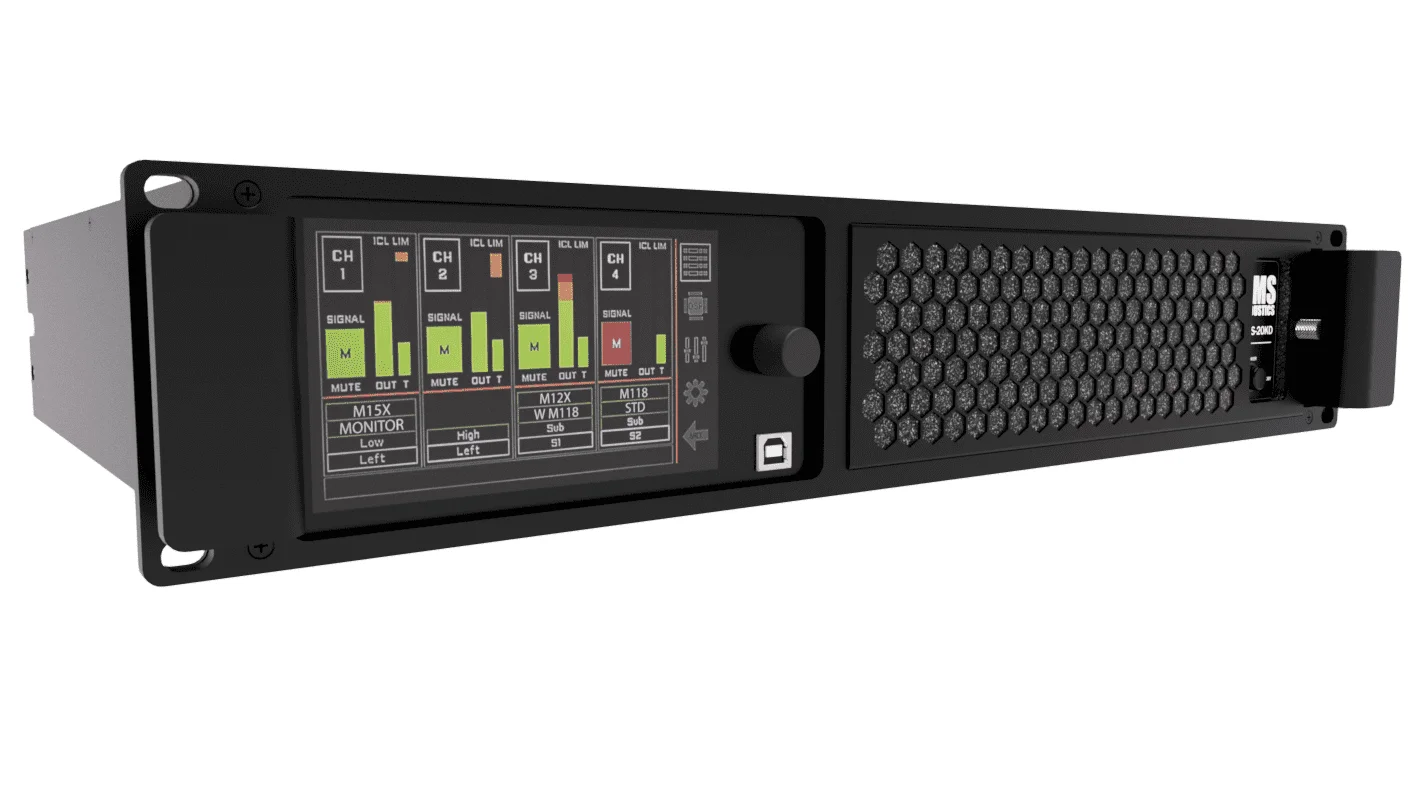

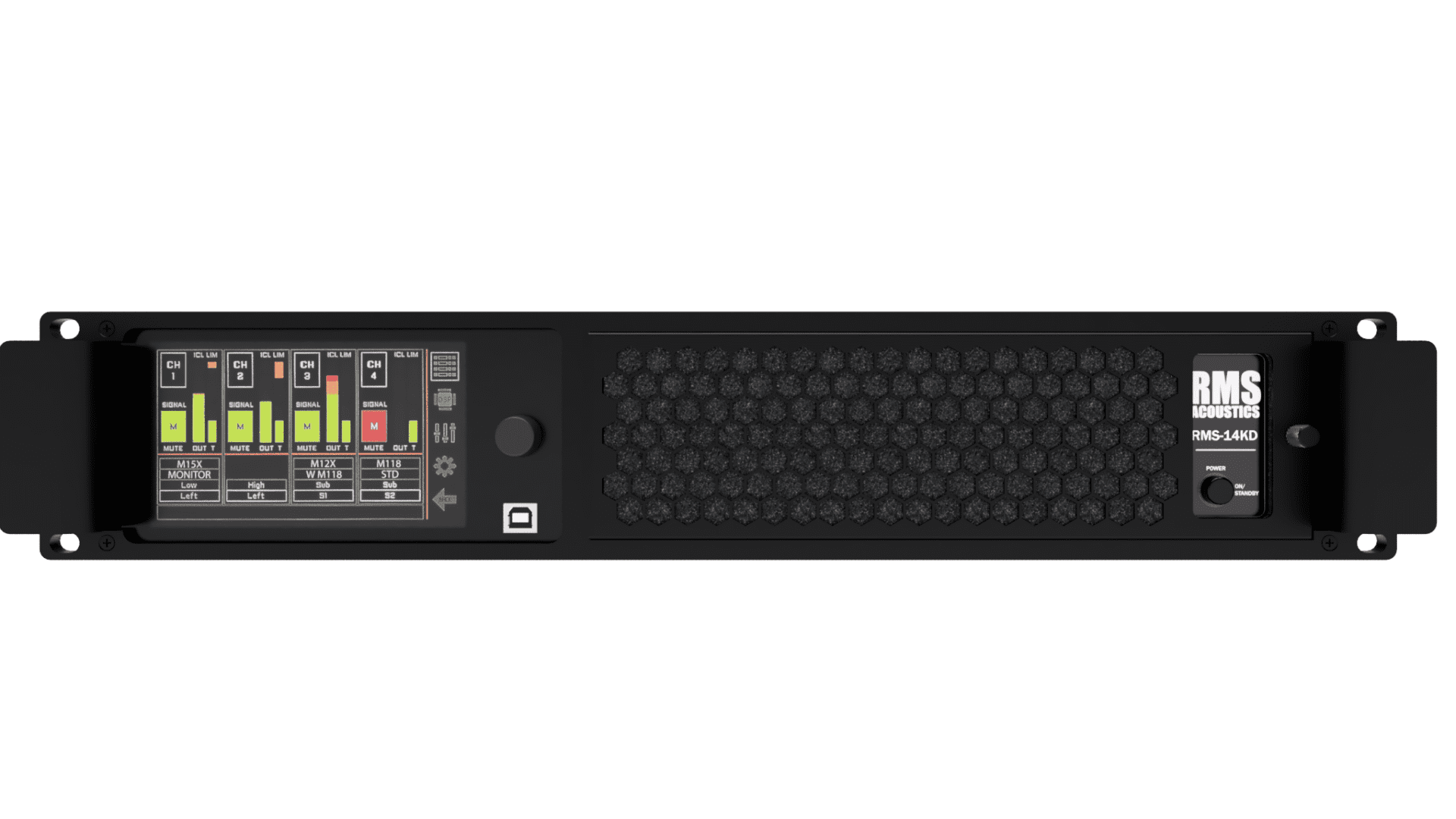

A large, capacitive IPS touch display enables level monitoring, quick recall, and configuration in the field via the front panel without the need for computer software.
The RMS-14K features a mixed signal 4 channel input routing matrix, able to individually configure any input as analog, AES, or DANTE. Any of the the four inputs can be individually routed to any of the four output channels.
The RMS-14K can be controlled and managed remotely via ethernet through the RMS-CONTROL software platform. An onboard Ethernet switch inside each amp enables daisy chain connections between multiple RMS amplifiers for small networks. Standby, gain, and mute controls are also available over a network API for custom software integrations, including QSYS.
Onboard enhanced energy saving features, power efficiency and remote Wake up enable you to save energy toward meeting environmental responsibility requirements. The wide range switching power supply allows operation on mains voltages from 90 to 265 volts. With active power factor correction (PFC), mains power efficiency is further improved.
Utilizing the latest generation of Class D topology, the RMS Amplifiers achieve very high efficiency (greater than 90%) under all loads while minimizing waste heat output. A temperature-controlled variable speed fan dissipates heat to the rear, with a washable/replaceable filter in the front. The already low idle power consumption can be reduced to below 5W by a remotely switchable standby mode.
The RMS-ACOUSTICS amplifiers can be configured to deliver their maximum power into a variety of load impedances, down to 2 ohms, as well as high-Z 100V/70V/50V/35V systems. The advanced power control management PCM™ provides the most efficient availability of the full frame power to all channels under differing and dynamic loads.
■ Large IPS display, capacitive touch panel user interface
■ High performance 96kHz DSP, end to end 64 bit double precision computation
■ Optional DanteTM Networking (AES67) and AES3 Digital inputs
■ Two Ethernet connections and front panel USB port for software control
■ Low weight high efficiency class D topology
■ Universal power supply with PFC
■ Up to 20kw frame power across 4 channels
■ 8, 4 and 2 Ohm low impedance operation
■ 100, 70, 50 and 35 V high impedance modes, each channel independently selectable
■ Power Control Management (PCMTM) yeilding greater than 90% efficiency

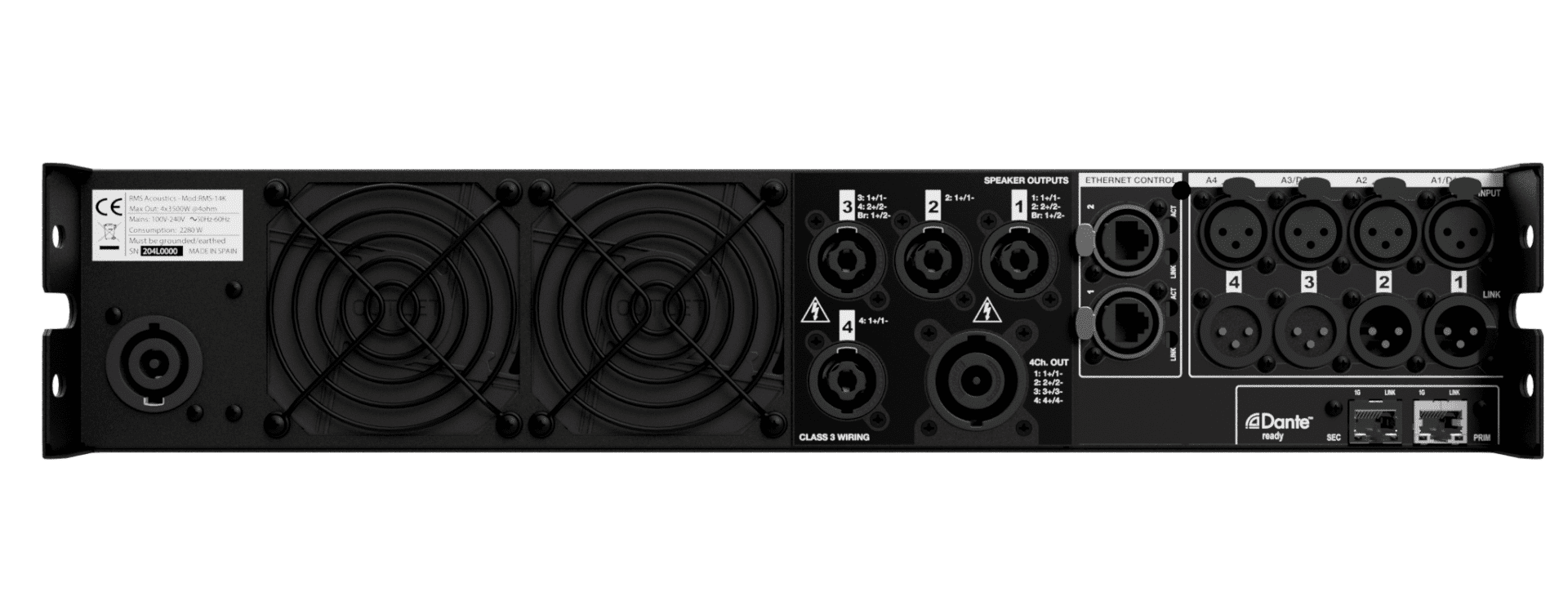

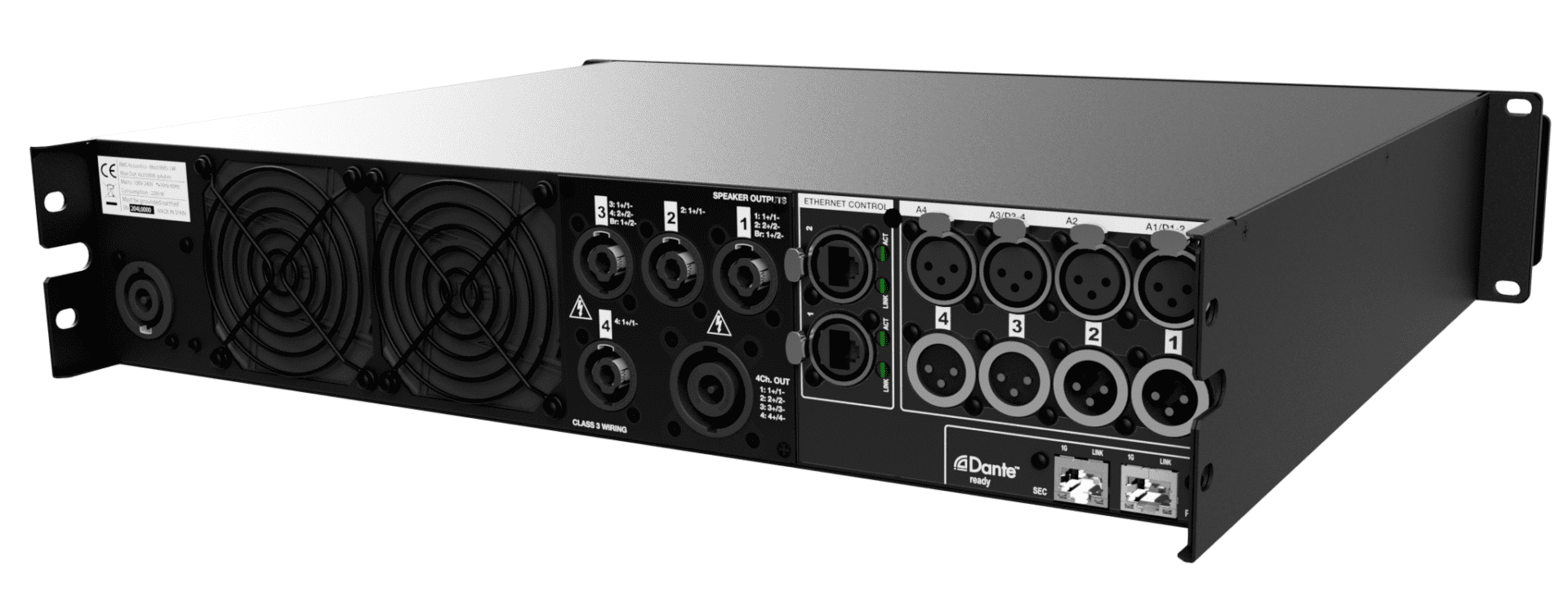

■ Industry standard Neutrik® XLR and Speakon® connectors
■ Neutrik® PowerConHC mains connector (32A version on 20K, 14k, 10K models) Powercon (20A on 5k, 3K models)
■ Removable, washable front panel dust filter
■ Top mount design to avoid fan dust accumulation on circuit boards
■ Temperature controlled, variable speed cooling fans, front inlet
■ AD Converters: High performance Burr-Brown multibit Delta-Sigma architecture, 24 Bit, 118dB Dynamic Range, 0.0004%THD+N Linear phase, 8X oversampling digital interpolation filter
■ DA Converters: High Performance Burr-Brown multibit Delta-Sigma architecture, 24 Bit, 118 dB Dynamic Range, 0.0005% THD+N
■ AES3 Input: 140dB Dynamic Range, 0.0001% THD+N, Sample Rate Converter (16 to 24 bit, 44.1kHz to 192kHz) transformer isolated, auto locking
Input Section (x4):
- Gain, Mute, Polarity inversion
- Delay lengths: in In A: 333ms (114m), In B/C/D: 90ms (31m)
- Input EQ: 16 IIR Parametric, Allpass + Hi Pass and Low Pass
Output Section (x4):
- Crossover Filters: FIR and IIR (up to 48dB/oct, Bessel, BW, LR)
- Output Delay: 90ms per channel
- Output IIR EQ: 12 filters per channel- Parametric( Qa and Qc), Allpass, Hi and Low shelf with fixed or variable Q, VARq HP and LP
- Output FIR EQ: 20 filters per channel (Parametric, Shelving, LP, HP, BP, SB, AP), or Custom. Up to 1000 taps
- RMS and Peak limiters with auto or manual time constants
- Two port Ethernet switch for daisy chain connection
- USB 2.0 Type B port on front panel for quick access
Miscellaneous:
- 100 Manufacturer system presets per library
- 20 User preset memories library
- 20 Frame snapshots per library
- Manufacturer/User passwords
- User control groups for system wide Equalization, Gain and Delay adjustments
- Zones definition for library management and alerts information
- Smaart® analysis software integration
PLATFORM MANAGEMENT
- There are three different levels of control, User, Intermediate and Advanced:
User Level functionaly:
- Input selection and Routing for each preset module
- Input matrixing configurations and signal type selection, Analog/Dante/AES3
- Input USER EQ section with 8 filters and 20 memories
- Selectable Input EQ Mode type, predefined by the manufacturer up to 6
- System Preset selection predefined by the manufacturer (Locked/Unlocked)
- Snapshot library management up to 100 presets
- Master Control Groups creation and editing via RMS-CONTROL software
Intermediate Level functionality:
- Same functionalities than Advanced Level with frame open and unlocked
- MODE EQ, OUTPUT EQ, and Dynamics not accessible without advanced user password
- Preset with output EQ can be created and stored in this access level, though can not be locked
Advanced Level functionality:
- Input EQ Mode section creation, up to 20 presets
- Ways routing section (Locked/Unlocked)
- IIR EQ section: XOver, Gain, Delay, and 7 EQ filters
- FIR EQ section: linear phase XOver and EQ filters, or custom up to 1000 taps
- RMS and Peak Dynamic control
- Snapshot library management up to 100 presets (Locked/Unlocked)
- System Preset library management up to 100 presets
- 5 Security levels definition to limit final user functionality
RMS-425Ki |
RMS-45Ki |
RMS-10K |
RMS-14K |
RMS-20K |
|
Output power | |||||
@ 2.67 Ohms | 4 x 430 W / 1 x 430W | 4 x 1250 W / 1 x 1700W | 4 x 2500 W / 1 x 3300W | 4 x 3500 W / 1 x 3750W | 4 x 5000 W / 1 x 6700W |
@ 4 Ohms | 4 x 625 W / 1 x 625W | 4 x 1250 W / 1 x 2500W | 4 x 2500 W / 1 x 2500W | 4 x 3500 W / 1 x 3750W | 4 x 5000 W / 1 x 6000W |
@ 8 Ohms | 4 x 625 W / 1 x 625W | 4 x 1250 W / 1 x 1250W | 4 x 1250 W / 1 x 1300 W | 4 x 1800 W / 1 x 1900W | 4 x 2500 W / 1 x 3000W |
Bridge @ 4 Ohms | 2 x 625 W | 2 x 2500 W | 2 x 5000 W | 2 x 7000 W | 2 x 10000 W |
Bridge @ 8 Ohms | 2 x 1250 W | 2 x 2500 W | 2 x 5000 W | 2 x 7000 W | 2 x 10000 W |
Hi-Z 100V | 4 x 625 / 1 x 1250 W | 4 x 1250 / 1 x 2500 W | 4 x 2500 / 1 x 2500 W | 4 x 3500 / 1 x 4200 W | 4 x 5000 / 1 x 5000 W |
Hi-Z 70V | 4 x 625 / 1 x 900 W | 4 x 1250 / 1 x 2500 W | 4 x 2500 / 1 x 2500 W | 4 x 2950 / 1 x 2950 W | 4 x 3500 / 1 x 3500 W |
Energy storage | |||||
150 J | 220 J | 300 J | 580 J | 970 J | |
Max output voltage | |||||
150 V peak | 150 V peak | 150 V peak | 189 V peak | 235 V peak | |
Slew Rate | |||||
70 V/uS | 70 V/uS | 70 V/uS | 70 V/uS | 70 V/uS | |
Damping Factor | |||||
>800 | >800 | >800 | >800 | >800 | |
Max output current | |||||
18 A peak | 36 A peak | 50 A peak | 59 A peak | 71 A peak | |
Default Gain | |||||
32dB | 32dB | 32dB | 32dB | 32dB | |
Voltage Gain | |||||
26 dB to 44 dB | 26 dB to 44 dB | 26 dB to 44 dB | 26 dB to 44 dB | 26 dB to 44 dB | |
Maximum Input Level | |||||
7.75V = 20dBU | 7.75V = 20dBU | 7.75V = 20dBU | 7.75V = 20dBU | 7.75V = 20dBU | |
THD+N 20Hz-20KHz | <0.05% | <0.05% | <0.05% | <0.05% | <0.05% |
Frequency Response | |||||
1dB Below Clip | 10Hz - 25kHz | 10Hz - 25kHz | 10Hz - 25kHz | 10Hz - 25kHz | 10Hz - 25kHz |
Crosstalk | |||||
20Hz-1KHz | >70 dB | >70 dB | >70 dB | >70 dB | >70 dB |
Signal to Noise Ratio | |||||
20Hz-20KHz | 111 dBA | 111 dBA | 111 dBA | 113 dBA | 115 dBA |
Required AC Mains | |||||
Operating Voltage (50Hz-60Hz) | 90V -265V AC | 90V -265V AC | 90V -265V AC | 90V -265V AC | 90V -265V AC |
1/8 Rated Power (230V, @4 Ohm) | 2.1 A | 3.7 A | 7.3 A | 10 A | 14 A |
1/8 Rated Power (120V, @4 Ohm) | 4.0 A | 7.2 A | 14 A | 19.2 A | 26.8 A |
Dimmensions | |||||
W x H x D (mm) | 483 x 88.9 x 331 | 483 x 88.9 x 331 | 483 x 88.9 x 369 | 483 x 88.9 x 369 | 483 x 88.9 x 369 |
W x H x D (inches) | 19 x 3.5 x 13 | 19 x 3.5 x 13 | 19 x 3.5 x 14.5 | 19 x 3.5 x 14.5 | 19 x 3.5 x 14.5 |
Weight | |||||
Net | 7 Kg / 15.4 lbs | 7.3 Kg / 16 lbs | 7.75 Kg / 17 lbs | 9.1 Kg / 20 lbs | 9.1 Kg / 20 lbs |
Shipping | 9.6 Kg / 21 lbs | 10 Kg / 22 lbs | 10.5 Kg / 23 lbs | 13.2 Kg / 29 lbs | 13.2 Kg / 29 lbs |
Electrical Connectivity | |||||
AC Power Connector | Neutrik® PowerCon 20A | Neutrik® PowerCon 20A | Neutrik® PowerCon HC 32A | Neutrik® PowerCon HC 32A | Neutrik® PowerCon HC 32A |
Loudspeaker Connections | Phoenix PC 5/ 8-ST1-7,62 | Phoenix PC 5/ 8-ST1-7,62 | 1x Neutrik® SpeakON NL8 + 4x NL4 | 1x Neutrik® SpeakON NL8 + 4x NL4 | 1x Neutrik® SpeakON NL8 + 4x NL4 |
Analog Input Connections | Phoenix MC 1,5/12-ST-3,5 | Phoenix MC 1,5/12-ST-3,5 | 4 XLR Inputs + 4 Parallel XLR Passthrough | 4 XLR Inputs + 4 Parallel XLR Passthrough | 4 XLR Inputs + 4 Parallel XLR Passthrough |
The RMS-10K and RMS-410Ki are electro-acoustically identical amplifiers provided in two different chassis with only differences in chassis size and electrical connectivity.
Cable-PCHC-5FT-240V Power Cable PowerconHC to NEMA L6-20 (This is the recommended optional power cable for the RMS-20K)
Cable-PCHC-5FT-120V Power Cable PowerconHC to NEMA 5-20P
Custom power cable configurations can be ordered upon request, contact [email protected] for assistance
RRR-1 Rear Rack Rail support Kit
AMP-FILTER-1 Replacement washable inlet filter for RMS-XXXK amplifiers
