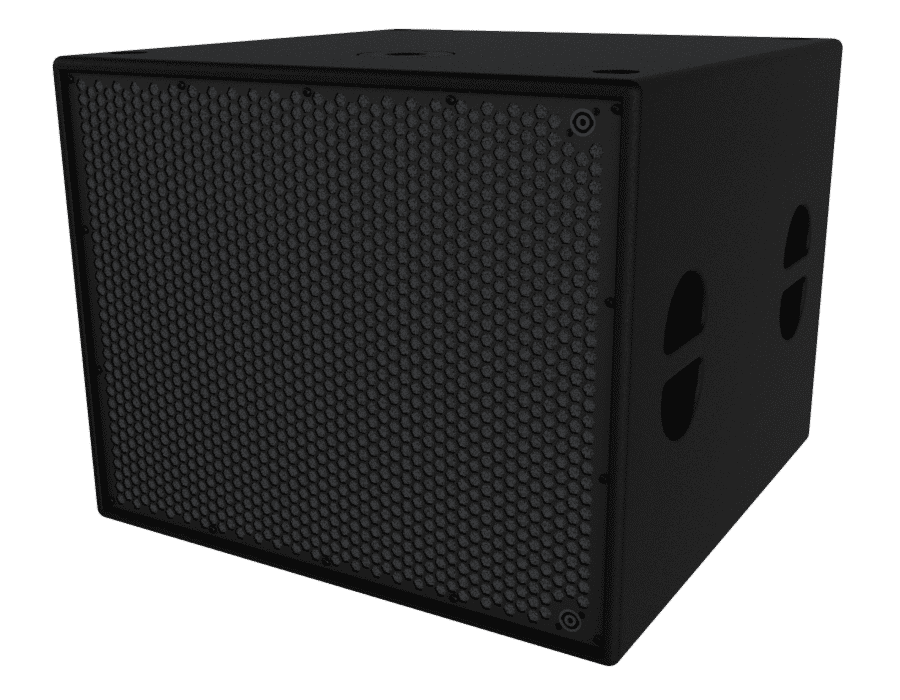

M118
| 137dB Max SPL |
| 32 Hz Low Frequency Limit |
| Laminar vents |
| Integrated handles and locking feet |
| Heavy duty construction |
| Designed with Cardioid Sub Arrays (CSA) in mind |
OVERVIEW
The M118 is a high efficiency, high impact sub-bass loudspeaker with exceptionally high power handling. It provides high impact, high sensitivity, low thermal compression and incredibly low distortion, even at the highest drive levels. These combined properties deliver the sonic qualities of precision and musicality.
The M118 features one long excursion, high power handling 18” cone loudspeaker mounted in a mechanically and acoustically optimized bass reflex cabinet with laminar venting. Port turbulence is virtually eliminated, and high drive level distortion is minimized via large, flared, symmetrical laminar venting. It operates from 35 Hz to 100 Hz when flown and from 32 Hz to 90 Hz when used as a general ground support subwoofer.
The M118 enclosure was designed with live performances and easy handling in mind. The compact profile allows the M118 to fit easily under stages, or stack in multiples up to 4 units. Multiple ergonomic handles on each side facilitate easy stacking and movement.
The enclosure is constructed of premium birch hardwood plywood and is coated with a weather and wear resistant urethane hybrid finish. Components in the front of the enclosure are protected by a steel grill made from perforated steel that is coated with heat cured epoxy powder and lined with acoustically transparent foam. All optional rigging components are weather and corrosion protected with a heat cured epoxy powder coated finish.
The optimum processed loudspeaker solution for the RMS-ACOUSTICS SB subwoofer family are the RMS-ACOUSTICS series of processed amplifiers, also the Linea Research C and M series amplifiers, with proprietary presets provided by RMS-ACOUSTICS.
SPECIFICATIONS
| Description | High power subwoofer, Single 18″ |
| Transducers | 1 High power, high excursion 18″ subwoofer |
| Frequency Response(-10dB): | 30Hz |
| Frequency Response (±3dB): | 35Hz – 120Hz |
| Maximum SPL | LF 131dB Avg, 137dB Peak |
| Sensitivity | LF 100dB (2.9V @ 100Hz, 1W 1m) |
| Transducer Power Rating (AES) | 1600W AES, 3200W Peak AES3-2012 (111 V, 8 ohm 155V Peak) |
| Long Term Power Rating (IEC) | 1000W IEC, 4000W Peak |
| Nominal Impedance: | 8 ohm |
| Electrical Input Connectivity: | Dual NL4, transducer wire pins 1, pins 2 thru, connectors paralleled Optional Phoenix Connector for M118i |
| Low Frequency Driver | 1 X 18” weather resistant, long excursion, 4” coil, die cast basket, vented magnet, Aluminum heat sink and demodulating rings |
| Enclosure Construction | Rectangular Cabinet, 15, 16, 18mm Exterior Grade birch plywood |
| Suspension Attachment | Optional M118i-1 20 (4 Top, 4 Bottom, 4 Back, 4 per side) 3/8-16 threaded brackets |
| Hardware | Standard with Handles, Rubber Feet on bottom and Stacking Skids on Top. Optional Reinforced 3/8-16 Mounting points Optional Flown Rigging system for conventional, Cardioid, and more complex sub arrays |
| Finish | Urethane Blend, highly Impact and UV resistant fine grain coating Steel Grill with Heat Cured Epoxy Powder Anti Corrosion Coating, Acoustically transparent foam(Black is standard, white is optional, custom colors optional) |
| IP Rating | 54 |
| Grill Details | Powder Coated 12 Gauge Cold Rolled Steel, Hexagonal Pattern |
| Dimensions W x H x D: | 27.5 x 21.6 x 28 in, 699 x 549 x 711 mm |
| Net Weight | 105 lbs, 47.7 Kg |
| Ordering Options | M118, M118i, M118F, M118Fi |
ACCESSORIES
| M118CART1 | Welded Aluminum Cart, Holds up to 3 M118 |
| Wheel Kit 4in | Rear Wheel Kit for M118/ M218 |
| M118FLYKIT | Flown Rigging Kit for M118, M218 |
| M118RF1 | Flown Rigging Frame for M118F, only applicable to M118F, or Requires M118FLYKIT |
| M118COVER2 | 2 High Travel Cover for M118 |
| M118COVER3 | 3 High Travel Cover for M118 |
