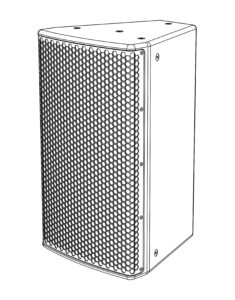

C12
Compact, highly versatile enclosure |
12" coaxial with 2.5" HF |
Multiple rotatable horn coverage patterns |
2-way biamp enclosure |
LF extension with M118, M218, SB115i |
OVERVIEW
The RMS-Acoustics C12 is a coaxial loudspeaker system designed to deliver output levels comparable to the highest output conventional premium 2-way systems, with superior pattern control, directional consistency and a precise transient response that only a coaxial loudspeaker can provide.
The C12 features an advanced high frequency waveguide that also acts as a phasing plug for the 12” cone loudspeaker. The horn is quite large for its size, yielding consistent pattern control and a low crossover point. The phasing plug improves the response of the cone loudspeaker minimizing the equalization and phase correction needed, thus aiding the transition between sources over the crossover band.
The C12 features a 40° trapezoidal angle to allow close mountings to walls or ceilings, with little to no impact on sightlines. Its tailorable pattern control, easy mounting and array ability with RMS-Acoustics array brackets allow a simple, cost effective method to tailor a sound reinforcement solution to achieve the best possible acoustical results in almost any space.
Optimized nonlinear venting improves the low frequency impedance compared to conventional enclosures, while maintaining better mechanical cone control when low frequency extension is required. The result is tight, punchy bass that also goes deep.
The C12 enclosure is crafted from premium multi-ply birch with a finely textured polyurethane finish that is impact and UV resistant. A powder-coated, punched and laser cut steel grille protects the cabinet internal from the elements. Full weather protection and custom color finishes are also available. The weatherized option provides and IP54 rating.
The optimum processed amplifier solutions for the RMS-Acoustics C12 are the RMS-ACOUSTICS series of processed and network managed amplifiers, also the Linea Research C and M series amplifiers, with proprietary presets provided by RMS-ACOUSTICS
SPECIFICATIONS
Frequency Range (-10dB) ^1 | 52 Hz - 20 kHz | |
Frequency Response (+/-3dB) | 65 Hz - 18 kHz | |
System Sensitivity (1w, 1m)^2 | 98dB | Measured on LF band, average SPL over 300 to 2 kHz region. HF Sensitivity significantly higher |
Maximum SPL Continuous (1m) | 126dB | |
Maximum SPL Peak (1m) | 132dB | |
Long Term Power Rating (AES)^4 | Full Range | 700W (2800W Peak), 2 hr, 500W 100Hr |
Long Term Power Rating (IEC)^3 | Full Range | 700W, 1400W (Continuous, Peak) |
Nominal Coverage Pattern | 120° x 60°
70° x 50° 90° x 55° 90° x 80° All are rotatable in 45° angular increments |
|
System Crossover | 1200 Hz Proprietary FIR overlay | |
TRANSDUCER: | SPKR-12-0006
SPKREP-1-0006
Passive / LF / HF |
LF Driver - 12” Neodymium cone loudspeaker with 2.5” voice coil, shorting ring and high performance convective cooling technology
HF Driver Replacement - 1.4” exit Neodymium compression driver with 3” voice coil, shorting ring and advanced phase plug geometry Impedance - 8 Ohm, 8 Ohm, 8 Ohm |
PHYSICAL: | ||
Input Connectors | Dual Neutrik NL4MP Connectors | |
Enclosure Materials | 15 and 18mm Birch Hardwood Ply 1.3mm layers | |
Grille Materials | Cold Rolled steel, Epoxy powder coat, Acoustically transparent black foam backing | |
Finishes | Black finish (Standard) Polurethane textured spray | |
Additional Finishes available - See Options Below | ||
Suspension and Mounting | Proprietary internal, captive rigging M10 mounting locations, Rear 4 bolt pattern | |
Dimensions | 14.0” W x 14” D x 24” H (356 mm x 356 mm x 610 mm) | |
Weight | 45 Lbs (20.5 kg) Net | |
Ordering Options | -X1 (Weatherized), -X2 (Weatherized), -W (White), -C (RAL Custom Color) Upcharge applies | |
Finish Options | -X1/2 (Weatherized), -W (White), -C (RAL Custom Color) Upcharge applies | |
Optional Accessories & Rigging Hardware | C12HU | Horizontal U Bracket specific to C12 |
WM-M | RMS-Acoustics wall mount medium with lateral orientation and vertical tilt | |
C12-AF | Two box array frame for C12/C12XL | |
Free field, semi anechoic conditions. To compare with half space measurements, add 6dB to maximum output specifications. | ||
1. Full Space, 4pi conditions | ||
2. Measured Maximum SPL, based on power compression observation of 3dB | ||
3. IEC Shaped pink noise with 6dB Crest Factor | ||
4. AES Standard AES2-2012, one decade pink noise with 6dB Crest factor within device’s applicable operating band, free air. Standard AES 2 hr rating are specific for low frequency transducers. |
AMPLIFIERS
The following amplifier frames can be used achieve performance from the C12 system
INSTALLATION
- Mobile or Installation capable Amplifier
- Maximum output power 4 X 5000 W into 4 Ohm
- Color TFT Touchscreen Monitoring Display
- All RMS Loudspeaker Presets
- Incredibly powerful FIR and IIR DSP capability
- High Impedance Load Capability 100/70/50/35 V Systems
- Open platform for any loudspeaker processing for any brand
-
Mobile or Installation Capable Amplifer
- Maximum output power 4 X 3500 W into 4 Ohm
- Color TFT Touchscreen Monitoring Display
- All RMS Loudspeaker Presets
- Incredibly powerful FIR and IIR DSP capability
- High Impedance Load Capability 100/70/50/35 V Systems
- Open platform for any loudspeaker processing for any brand
-
Mobile or Installation Capable Amplifier
- Maximum output power 4 X 2500 W into 4 Ohm
- Color TFT Touchscreen Monitoring Display
- All RMS Loudspeaker Presets
- Incredibly powerful FIR and IIR DSP capability
- High Impedance Load Capability 100/70/50/35 V Systems
- Open platform for any loudspeaker processing for any brand
- Installation Specific 4 Channel Amplifier
- Maximum output power 4 X 2500 W into 4 Ohm
- Color TFT Touchscreen Monitoring Display
- All RMS Loudspeaker Presets
- Incredibly powerful FIR and IIR DSP capability
- Optional GPIO for Power and Mute control, Fault Monitoring
- Signal, Loudspeaker, GPIO connections on Euroblocks
- High Impedance Load Capability 100/70/50/35 V Systems
- Open platform for any loudspeaker processing for any brand
