The RMS-10K has been designed to supply the voltage required by the highest performance loudspeakers in the Pro audio industry. The amp is capable of driving high and low impedance loads, and features a variety of input signal connectivity, making the platform suitable for both live applications and fixed installations.

The platform features a 96kHz sample rate, end to end 64 bit double precision signal processing, low latency DSP with fixed through time (non FIR), advanced FIR capability ( up to 1000 tap per channel), extensive multi Layer IIR filtering, multi stage limiting, robust grouping and management for large system implementations.

The RMS-ACOUSTICS amplifiers contain an extensive library of RMS loudspeaker Presets and System Snapshot configuration, as well as the ability for third party designers or engineers to create their own presets, snapshots, and libraries of both.

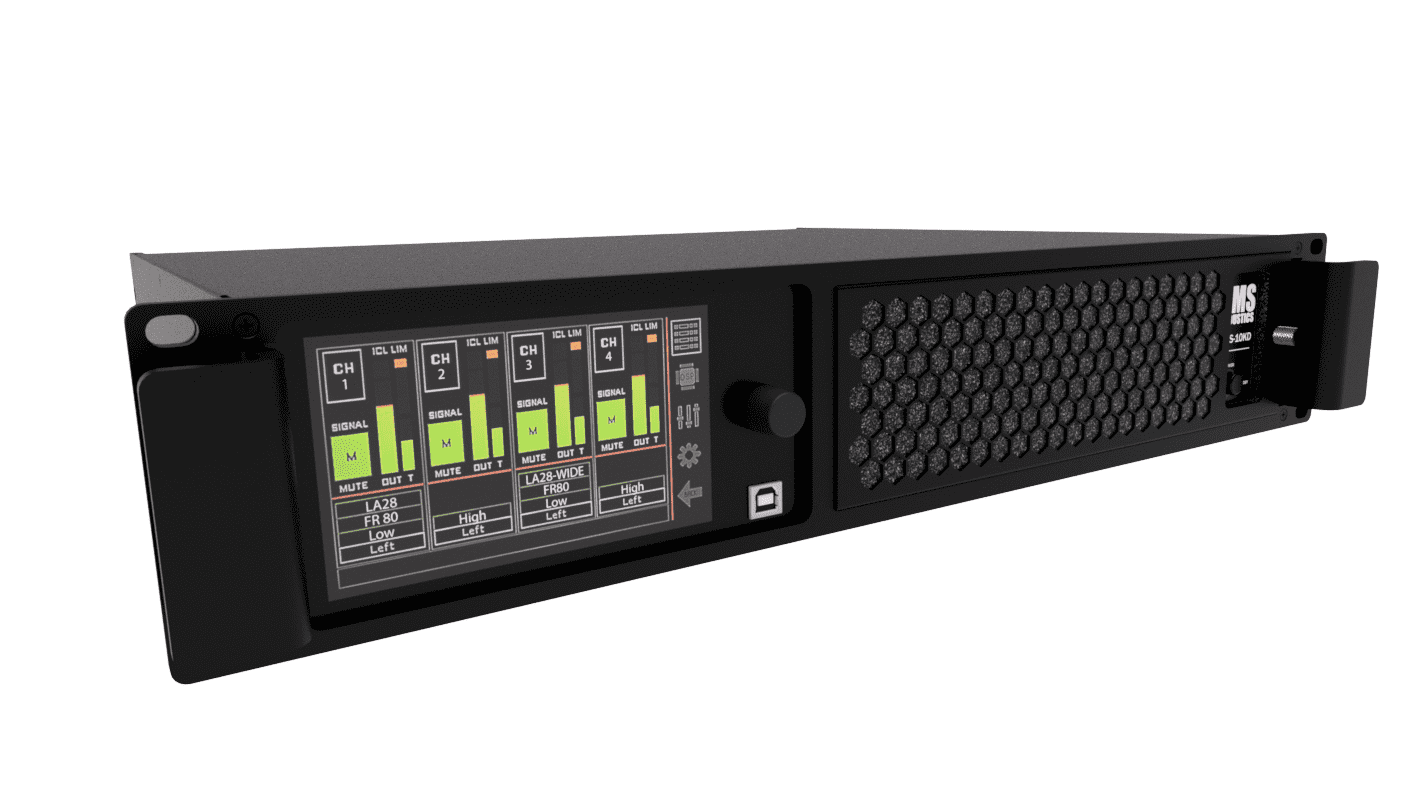

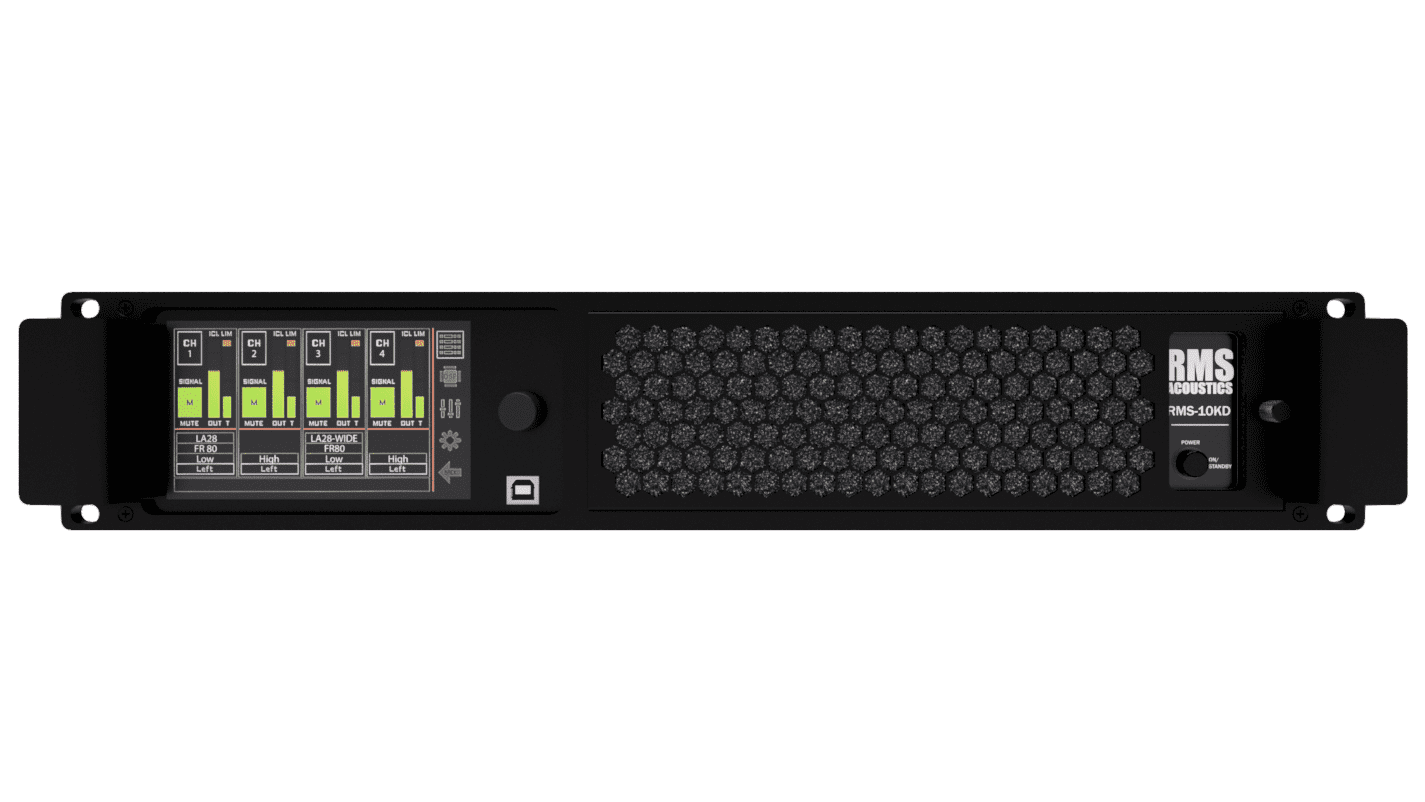

A large, capacitive IPS touch display enables level monitoring, quick recall, and configuration in the field via the front panel without the need for computer software.

The RMS-10K features a mixed signal 4 channel input routing matrix, able to individually configure any input as analog, AES, or DANTE. Any of the the four inputs can be individually routed to any of the four output channels.

The RMS-10K can be controlled and managed remotely via ethernet through the RMS-CONTROL software platform. An onboard Ethernet switch inside each amp enables daisy chain connections between multiple RMS amplifiers for small networks. Standby, gain, and mute controls are also available over a network API for custom software integrations, including QSYS.

Onboard enhanced energy saving features, power efficiency and remote Wake up enable you to save energy toward meeting environmental responsibility requirements. The wide range switching power supply allows operation on mains voltages from 90 to 265 volts. With active power factor correction (PFC), mains power efficiency is further improved.

Utilizing the latest generation of Class D topology, the RMS Amplifiers achieve very high efficiency (greater than 90%) under all loads while minimizing waste heat output. A temperature-controlled variable speed fan dissipates heat to the rear, with a washable/replaceable filter in the front. The already low idle power consumption can be reduced to below 5W by a remotely switchable standby mode.

The RMS-ACOUSTICS amplifiers can be configured to deliver their maximum power into a variety of load impedances, down to 2 ohms, as well as high-Z 100V/70V/50V/35V systems. The advanced power control management PCM™ provides the most efficient availability of the full frame power to all channels under differing and dynamic loads.

■ Large IPS display, capacitive touch panel user interface

■ High performance 96kHz DSP, end to end 64 bit double precision computation

■ Optional Dante^TM Networking (AES67) and AES3 Digital inputs

■ Two Ethernet connections and front panel USB port for software control

■ Low weight high efficiency class D topology

■ Universal power supply with PFC

■ Up to 10kw frame power across 4 channels

■ 8, 4 and 2 Ohm low impedance operation

■ 100, 70, 50 and 35 V high impedance modes, each channel independently selectable

■ Power Control Management (PCM^TM) yeilding greater than 90% efficiency

■ Industry standard Neutrik® XLR and Speakon® connectors

■ Neutrik® PowerConHC mains connector (32A version on 20K, 14k, 10K models) Powercon (20A on 5k, 3K models)

■ Removable, washable front panel dust filter

■ Top mount design to avoid fan dust accumulation on circuit boards

■ Temperature controlled, variable speed cooling fans, front inlet

■ AD Converters: High performance Burr-Brown multibit Delta-Sigma architecture, 24 Bit, 118dB Dynamic Range, 0.0004%THD+N Linear phase, 8X oversampling digital interpolation filter

■ DA Converters: High Performance Burr-Brown multibit Delta-Sigma architecture, 24 Bit, 118 dB Dynamic Range, 0.0005% THD+N

■ AES3 Input: 140dB Dynamic Range, 0.0001% THD+N, Sample Rate Converter (16 to 24 bit, 44.1kHz to 192kHz) transformer isolated, auto locking

Input Section (x4):

Gain, Mute, Polarity inversion
Delay lengths: in In A: 333ms (114m), In B/C/D: 90ms (31m)
Input EQ: 16 IIR Parametric, Allpass + Hi Pass and Low Pass

Output Section (x4):

Crossover Filters: FIR and IIR (up to 48dB/oct, Bessel, BW, LR)
Output Delay: 90ms per channel
Output IIR EQ: 12 filters per channel- Parametric( Qa and Qc), Allpass, Hi and Low shelf with fixed or variable Q, VARq HP and LP
Output FIR EQ: 20 filters per channel (Parametric, Shelving, LP, HP, BP, SB, AP), or Custom. Up to 1000 taps
RMS and Peak limiters with auto or manual time constants
Two port Ethernet switch for daisy chain connection
USB 2.0 Type B port on front panel for quick access

Miscellaneous:

100 Manufacturer system presets per library
20 User preset memories library
20 Frame snapshots per library
Manufacturer/User passwords
User control groups for system wide Equalization, Gain and Delay adjustments
Zones definition for library management and alerts information
Smaart® analysis software integration

PLATFORM MANAGEMENT

There are three different levels of control, User, Intermediate and Advanced:

User Level functionaly:

Input selection and Routing for each preset module
Input matrixing configurations and signal type selection, Analog/Dante/AES3
Input USER EQ section with 8 filters and 20 memories
Selectable Input EQ Mode type, predefined by the manufacturer up to 6
System Preset selection predefined by the manufacturer (Locked/Unlocked)
Snapshot library management up to 100 presets
Master Control Groups creation and editing via RMS-CONTROL software

Intermediate Level functionality:

Same functionalities than Advanced Level with frame open and unlocked
MODE EQ, OUTPUT EQ, and Dynamics not accessible without advanced user password
Preset with output EQ can be created and stored in this access level, though can not be locked

Advanced Level functionality:

Input EQ Mode section creation, up to 20 presets
Ways routing section (Locked/Unlocked)
IIR EQ section: XOver, Gain, Delay, and 7 EQ filters
FIR EQ section: linear phase XOver and EQ filters, or custom up to 1000 taps
RMS and Peak Dynamic control
Snapshot library management up to 100 presets (Locked/Unlocked)
System Preset library management up to 100 presets
5 Security levels definition to limit final user functionality

	RMS-425Ki	RMS-45Ki	RMS-10K	RMS-14K	RMS-20K
Output power
@ 2.67 Ohms	4 x 430 W / 1 x 430W	4 x 1250 W / 1 x 1700W	4 x 2500 W / 1 x 3300W	4 x 3500 W / 1 x 3750W	4 x 5000 W / 1 x 6700W
@ 4 Ohms	4 x 625 W / 1 x 625W	4 x 1250 W / 1 x 2500W	4 x 2500 W / 1 x 2500W	4 x 3500 W / 1 x 3750W	4 x 5000 W / 1 x 6000W
@ 8 Ohms	4 x 625 W / 1 x 625W	4 x 1250 W / 1 x 1250W	4 x 1250 W / 1 x 1300 W	4 x 1800 W / 1 x 1900W	4 x 2500 W / 1 x 3000W
Bridge @ 4 Ohms	2 x 625 W	2 x 2500 W	2 x 5000 W	2 x 7000 W	2 x 10000 W
Bridge @ 8 Ohms	2 x 1250 W	2 x 2500 W	2 x 5000 W	2 x 7000 W	2 x 10000 W
Hi-Z 100V	4 x 625 / 1 x 1250 W	4 x 1250 / 1 x 2500 W	4 x 2500 / 1 x 2500 W	4 x 3500 / 1 x 4200 W	4 x 5000 / 1 x 5000 W
Hi-Z 70V	4 x 625 / 1 x 900 W	4 x 1250 / 1 x 2500 W	4 x 2500 / 1 x 2500 W	4 x 2950 / 1 x 2950 W	4 x 3500 / 1 x 3500 W
Energy storage
	150 J	220 J	300 J	580 J	970 J
Max output voltage
	150 V peak	150 V peak	150 V peak	189 V peak	235 V peak
Slew Rate
	70 V/uS	70 V/uS	70 V/uS	70 V/uS	70 V/uS
Damping Factor
	>800	>800	>800	>800	>800
Max output current
	18 A peak	36 A peak	50 A peak	59 A peak	71 A peak
Default Gain
	32dB	32dB	32dB	32dB	32dB
Voltage Gain
	26 dB to 44 dB	26 dB to 44 dB	26 dB to 44 dB	26 dB to 44 dB	26 dB to 44 dB
Maximum Input Level
	7.75V = 20dBU	7.75V = 20dBU	7.75V = 20dBU	7.75V = 20dBU	7.75V = 20dBU
THD+N 20Hz-20KHz	<0.05%	<0.05%	<0.05%	<0.05%	<0.05%
Frequency Response
1dB Below Clip	10Hz - 25kHz	10Hz - 25kHz	10Hz - 25kHz	10Hz - 25kHz	10Hz - 25kHz
Crosstalk
20Hz-1KHz	>70 dB	>70 dB	>70 dB	>70 dB	>70 dB
Signal to Noise Ratio
20Hz-20KHz	111 dBA	111 dBA	111 dBA	113 dBA	115 dBA
Required AC Mains
Operating Voltage (50Hz-60Hz)	90V -265V AC	90V -265V AC	90V -265V AC	90V -265V AC	90V -265V AC
1/8 Rated Power (230V, @4 Ohm)	2.1 A	3.7 A	7.3 A	10 A	14 A
1/8 Rated Power (120V, @4 Ohm)	4.0 A	7.2 A	14 A	19.2 A	26.8 A
Dimmensions
W x H x D (mm)	483 x 88.9 x 331	483 x 88.9 x 331	483 x 88.9 x 369	483 x 88.9 x 369	483 x 88.9 x 369
W x H x D (inches)	19 x 3.5 x 13	19 x 3.5 x 13	19 x 3.5 x 14.5	19 x 3.5 x 14.5	19 x 3.5 x 14.5
Weight
Net	7 Kg / 15.4 lbs	7.3 Kg / 16 lbs	7.75 Kg / 17 lbs	9.1 Kg / 20 lbs	9.1 Kg / 20 lbs
Shipping	9.6 Kg / 21 lbs	10 Kg / 22 lbs	10.5 Kg / 23 lbs	13.2 Kg / 29 lbs	13.2 Kg / 29 lbs

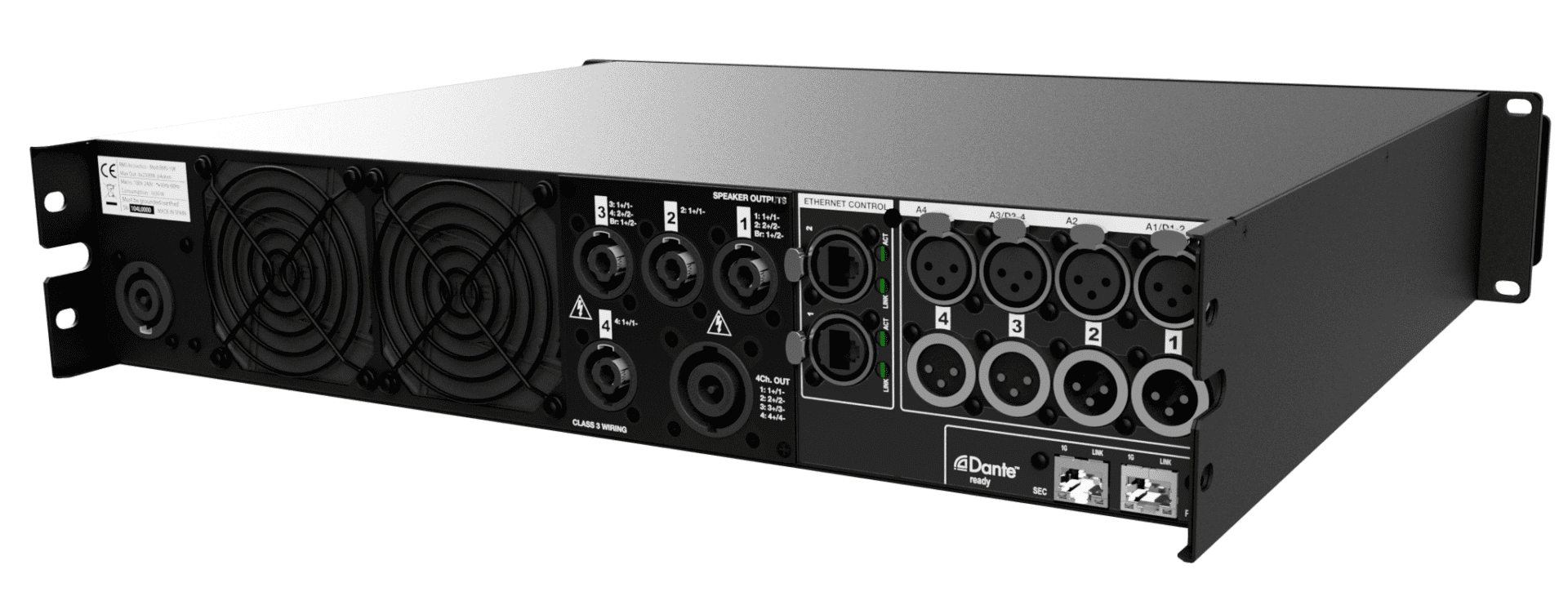

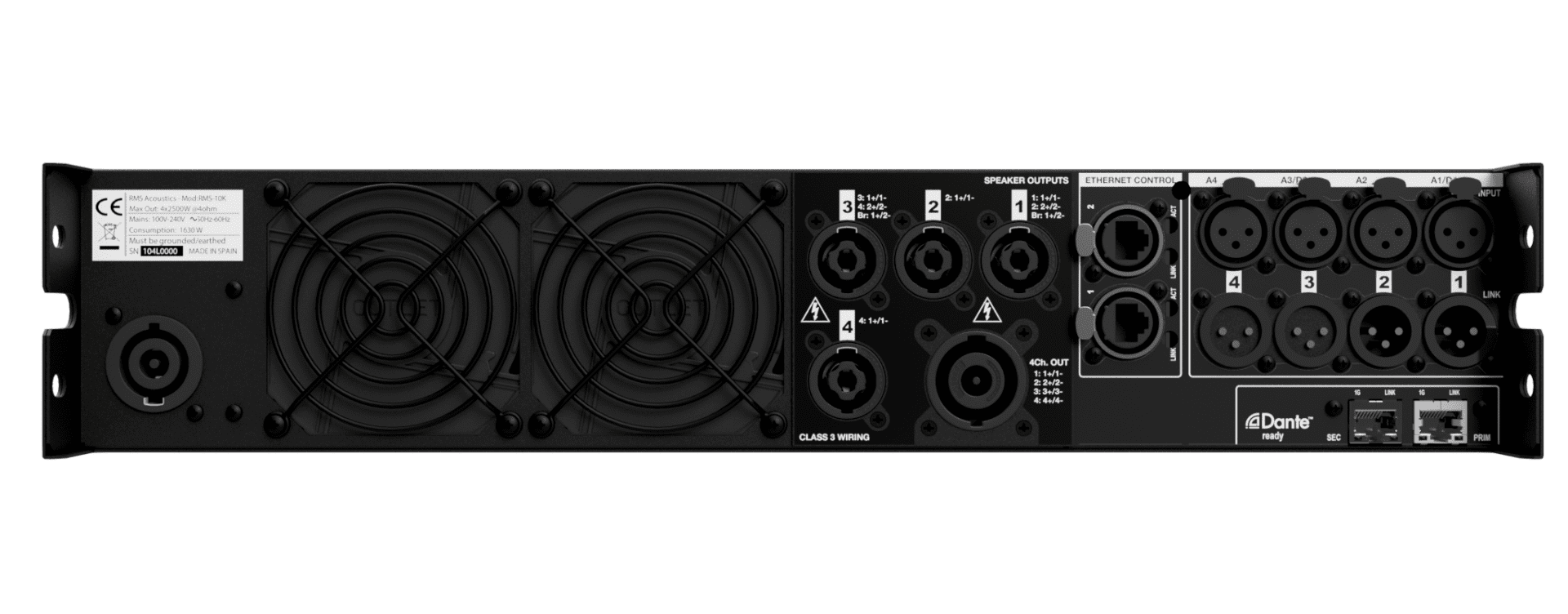

Electrical Connectivity
AC Power Connector	Neutrik® PowerCon 20A	Neutrik® PowerCon 20A	Neutrik® PowerCon HC 32A	Neutrik® PowerCon HC 32A	Neutrik® PowerCon HC 32A
Loudspeaker Connections	Phoenix PC 5/ 8-ST1-7,62	Phoenix PC 5/ 8-ST1-7,62	1x Neutrik® SpeakON NL8 + 4x NL4	1x Neutrik® SpeakON NL8 + 4x NL4	1x Neutrik® SpeakON NL8 + 4x NL4
Analog Input Connections	Phoenix MC 1,5/12-ST-3,5	Phoenix MC 1,5/12-ST-3,5	4 XLR Inputs + 4 Parallel XLR Passthrough	4 XLR Inputs + 4 Parallel XLR Passthrough	4 XLR Inputs + 4 Parallel XLR Passthrough

The RMS-10K and RMS-410Ki are electro-acoustically identical amplifiers provided in two different chassis with only differences in chassis size and electrical connectivity.

Cable-PCHC-5FT-240V Power Cable PowerconHC to NEMA L6-20 (This is the recommended optional power cable for the RMS-20K)

Cable-PCHC-5FT-120V Power Cable PowerconHC to NEMA 5-20P

Custom power cable configurations can be ordered upon request, contact [email protected] for assistance

RRR-1 Rear Rack Rail support Kit

AMP-FILTER-1 Replacement washable inlet filter for RMS-XXXK amplifiers

RMS-CONTROL

An intuitive software platform that facilitates efficient setup and deployment of audio systems, both tour sound systems and installations. Configure and route analog, DANTE, and AES3 sources, equalize, phase align, delay, and verfiy with Real Time SMAART integration, document all of your data with equalization files, preset files, preset and snapshot libraries, and full system configurations. Advanced grouping and zoning for both installations and live sound loudspeaker deployments.
