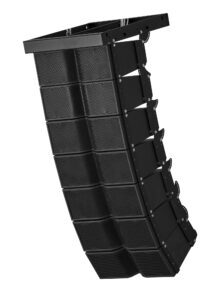

LA28i
| Incredible fidelity, Impressive output for its size |
| 90 x 10, 130 x 10 (WIDE) dispersion pattern |
| 2-way Biamplified enclosure |
| Curved laminar vents for maximum LF extension and no port noise |
| LF extension further with M118i or M218i |
OVERVIEW
The LA28i is a 2-way high performance linear array loudspeaker system employing 2 8” LF and a 1.4” exit HF connected to an acoustic boundary element optimized waveguide. The precise 90 X 10 (h x v) constant directivity horn delivers accurate, consistent coverage area when deployed for mains PA applications. The LA28i horn feautures the proprietary RMS-Acoustics confocal elliptic waveguides, made with cutting edge additive manufacturing technology. The LA28i enclosure is constructed from birch hardwood plywood featuring, an impact and UV resistant polyurethane paint finish, and high resolution integrated interconnect rigging. The front of the loudspeaker cabinet is protected by a hexagonal punched and laser cut steel grill, backed with an acoustically transparent foam.
SPECIFICATIONS
| Frequency Range (-10dB): | 55Hz- 20kHz with LA28FR PRESET |
| Frequency Response (±3dB): | 70Hz -18kHz, with LA28FR PRESET |
| Electrical Input Connectivity: | Dual Neutrik NL4MP connectors on rear |
| Transducer Power Rating (AES) | LF 700W (2800W Peak), 2 hrs, 500W 100Hr HF 110W (400W Peak), 2 hrs 70W 100Hr |
| Long Term Power Rating (IEC) | LF 600W, 1200W, 2400W ( Continuous, Program, Peak) HF 220W, 400W, 800W (Continuous, Program, Peak) |
| Maximum SPL (1m) | 127dB Continuous, 133dB Peak |
| Sensitivity (dB SPL, 1W, 1m) | 103dB |
| Nominal Impedance: | LF 8 Ohm HF 8 Ohm |
| Low Frequency Driver | 8in Neodymium cone loudspeaker with 2.5″ voice coil, shorting ring and high performance convective cooling technology |
| High Frequency Driver | 1.4″ exit Neodymium compression driver with 3in voice coil, shorting ring, and advanced phase plug geometry |
| Enclosure Construction | 15 and 18mm Birch Hardwood plywood 1.3mm layers |
| Suspension Attachment | Proprietary internal, captive rigging |
| Flown Array Maximum | 22 LA28, or LA28 wide. Number decreases by formula with M118 inclusion at top of array. |
| Finish | Black Polyurea/ Urethane with aliphatic UV inhibitor |
| Grill Details | Powder Coated 12 Gauge Cold Rolled Steel, Hexagonal Pattern |
| Dimensions W X D X H: | 28.5″ X 15.5″ X 9.7″, 723.9mm X 393.7mm X 246.4mm |
| Net Weight | 62 Lbs, 28.2kg |
| Ordering Options | LA28, LA28i (Install), LA28WIDE, LA28iWIDE (Install) |
| Color Ordering Options | Black Standard, Optional (Upcharge) -W (White), -X (Weatherized), -C (RAL Specified custom color) |
ACCESSORIES
| LA28RF1 | Required Large format Rigging Frame |
| LA28RF2 | Optional small format compact Rigging Frame, can suspend a maximum of 8 LA28 or LA28WIDE — NOT DESIGNED FOR USE WITH M118 |
| LA28RF-EX | LA28RF1 Extension arm, facilitates high uptilt, downtilt, wide spaced rigging points |
| LA28-UMOUNT | Ceiling Umount for LA28, hand up to 5 LA28 or LA28WIDE |
| LA28-CART1 | Rolling Cart, supports up to 6 LA28, including Frame and cable Storage |
| LA28-TOPPLATE | Top Cover and 4 Corner Poles, creates flat top with load support up to 200Lbs |
| LA28COVER4 | Weather resistant cover for 4 LA28 on Cart |
| LA28COVER6 | Weather resistant cover for 6 LA28 on Cart |
| NL4JUMP | Cable Jumper |
| NL4-18M | 18m Cable (59ft) |
| NL4-25M | 25m Cable (82ft) |
| NL4-30M | 30m Cable (98.4ft) |
