VC10-30i

Compact, variable curvature array system for permanent installation
10" LF with 1.4" HF
90H x 30V degree directivity, optional 120x30
2-way passive enclosure, optional bi-amp
LF extension with VC115Si

OVERVIEW

The VC10-30 is a compact, high output, versatile sound reinforcement solution for permanent installations such as theaters, houses of worship, educational facilities, live music spaces, and sporting venues.

The VC10-30 is a curved aperture, linear source module, purposefully designed for permanent installations.  VC10-30 shares the identical sonic performance characteristics throughout the full range of the VC family, with simple, robust, and versatile integrated rigging, designed to fulfill the needs and requirements of dedicated permanent commercial installations.

Part of the Variable Curvature (VC) Series of products, VC10-30 is a short to medium throw product designed for audience application distances up to 20 m. The multifunctional family of sound reinforcement modules includes VC10-15, VC10-15 NARROW,  VC10-30, VC10-30-WIDE, and VC15S subwoofer. VC10 models are passive loudspeaker systems, each with distinct horizontal and vertical coverage patterns. All VC10 products can be combined to form uniquely tailored vertical or horizontal line sources or deployed individually as point sources.

Arrays of VC10 modules can adapt to virtually any audience geometry through the employ of two vertical enclosure coverage patterns (15° or 30°), and three horizontal coverage patterns (70°, 90° or 120°), and a range of accessories for vertical or horizontal array deployment.

The VC10-30 is a curved aperture, linear source module, purposefully designed for permanent installations.  VC10-30 shares the identical sonic performance characteristics throughout the full range of the VC family, with simple, robust, and versatile integrated rigging, designed to fulfill the needs and requirements of dedicated permanent commercial installations.

The VC10-30 features variable horizontal coverage between standard (90°) and wide (120°). This flexibility allows designers and integrators to adapt both the horizontal and vertical directivity of the overall linear source system uniquely to the audience geometry. This ensures exceptional frequency response consistency throughout the entire coverage envelope.

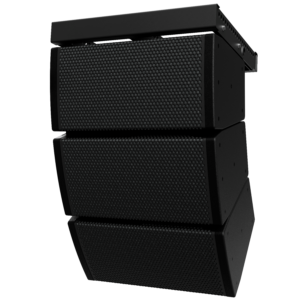

Combinations of VC10 models are designed to be flown together, forming a continuously curved vertical line source. VC10-30 can also be used as a point source installation loudspeaker in either standard, or wide configurations, and is well suited for a wide variety of applications, from PA mains, to fill loudspeakers, to delay rings.

The low frequency of the VC10 family is reinforced with the addition of the VC15S subwoofer. This high impact, high output subwoofer is the ideal match for reinforcing the low end of VC systems and extends the system bandwidth down to 37Hz.

The optimum processed loudspeaker solution for the RMS-Acoustics VC Family are Linea Research C and M series amplifiers, with proprietary presets provided by RMS-Acoustics.

SPECIFICATIONS

SYSTEM::
Frequency Range (-10dB) ^1 45 Hz - 20 kHz
Frequency Response (+/-3dB) 60 Hz - 18 kHz
System Sensitivity (1w, 1m)^2 97dB Measured on LF band, average SPL over 300 to 1 kHz region. HF Sensitivity significantly higher
Maximum SPL Continuous (1m) 123dB
Maximum SPL Peak (1m) 129dB
Long Term Power Rating (IEC)^3 LF

HF

250W, 500W, 1000W (Continuous, Program, Peak)

220W, 400W, 800W (Continuous, Program, Peak)

Long Term Power Rating (AES)^4 LF

HF

600W (2400W Peak), 2 hrs, 400W 100Hr

110W (400W Peak), 2 hrs, 70W 100Hr

Nominal Coverage Pattern 90° Horizontal x 30° Vertical (Standard) 120° Horizontal x 30° Vertical (Wide) -6dB Isophase
System Crossover 1050 Hz with Traditional IIR, Proprietary, though around similar region FIR
Transducer SPKR-10-0004



SPKR-1.4-0003

LF Driver - 10” Neodymium cone loudspeaker with 2.5” voice coil, shorting ring and high performance convective cooling technology

HF Driver - 1.4” exit Neodymium coaxial compression driver with 3” voice coil, shorting ring, and advanced phase plug geometry

Impedance Passive, LF, HF 8 Ohm, 8 Ohm, 8 Ohm
PHYSICAL:
Input Connectors Dual Neutrik NL4MP Connectors
Enclosure Materials 12 and 15mm Birch Hardwood Ply 1.3mm layers
Grille Materials Cold Rolled Steel, Epoxy powder coat, Acoustically transparent black foam backing
Finishes Black finish (Standard) Polurethane textured spray
Additional Finishes available - See Options Below
Suspension and Mounting Proprietary internal, captive rigging
Flown Array Maximum 10x VC10-15i or VC10-30i.  Number decreases by formula with VCSUB inclusion at top of array. Maximum Array weight 1000 Lb (454 kg)
Rigging Hardware VCRF1 Required Large Format Rigging Frame
VCRF-EX VCRF1 Extension arm, facilitates high uptilt, downtilt, wide spaced rigging points
VC-UMOUNT Ceiling U Mount for VC Cabs, hang up to 3 VCxx or VCxxWIDE
Dimensions 24.4” w x 15.5” d x 11.7” h  (620 mm x 394 mm x 297 mm)
Weight 70 Lbs (31.8 kg) Net
Finish Options -X (Weatherized), -W (White), -C (Custom Color) Upcharge applies
Optional Accessories
Free field, semi anechoic conditions.  To compare with half space measurements, add 6dB to maximum output specifications.
1. Full Space, 4pi conditions
2. Measured Maximum SPL, based on power compression observation of 3dB
3. IEC Shaped pink noise with 6dB Crest Factor
4. AES Standard AES2-2012, one decade pink noise with 6dB Crest factor within device’s applicable operating band, free air. Standard AES 2 hr rating are specific for low frequency transducers.
