M218

Heavy duty construction
Low profile, space optimized design
Laminar vents
Integrated locking feet
Designed with Cardioid Sub Arrays (CSA) in mind

OVERVIEW

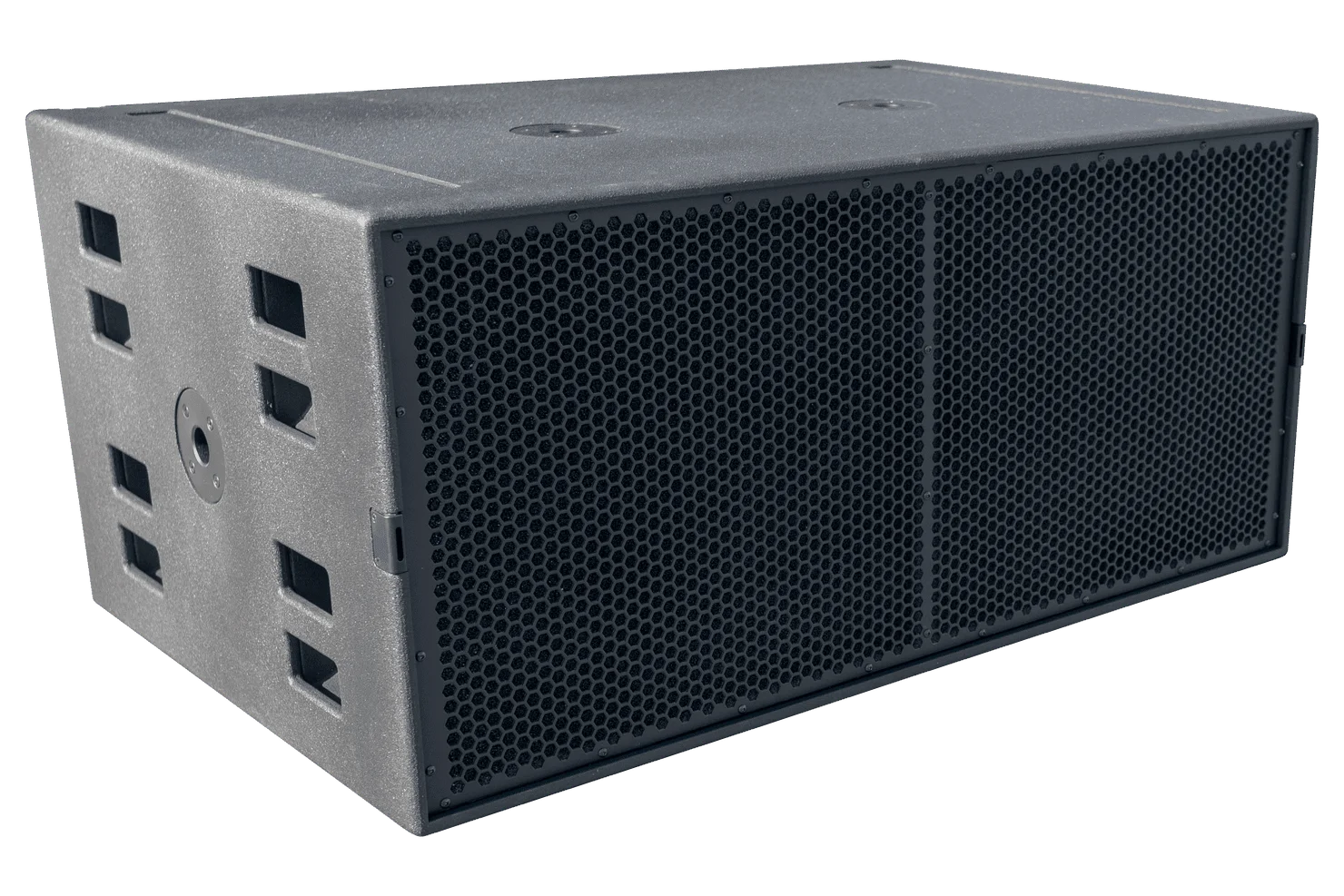

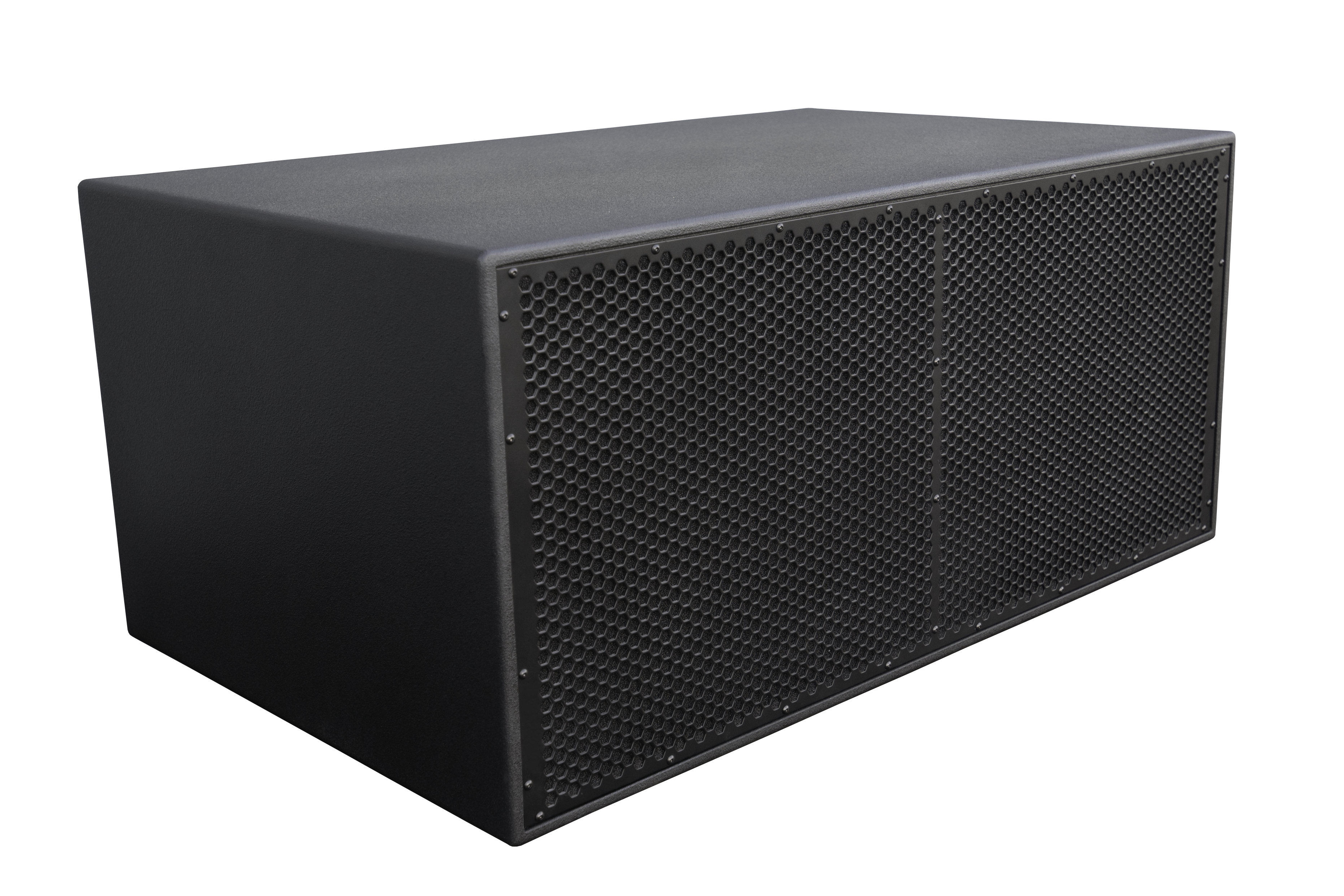

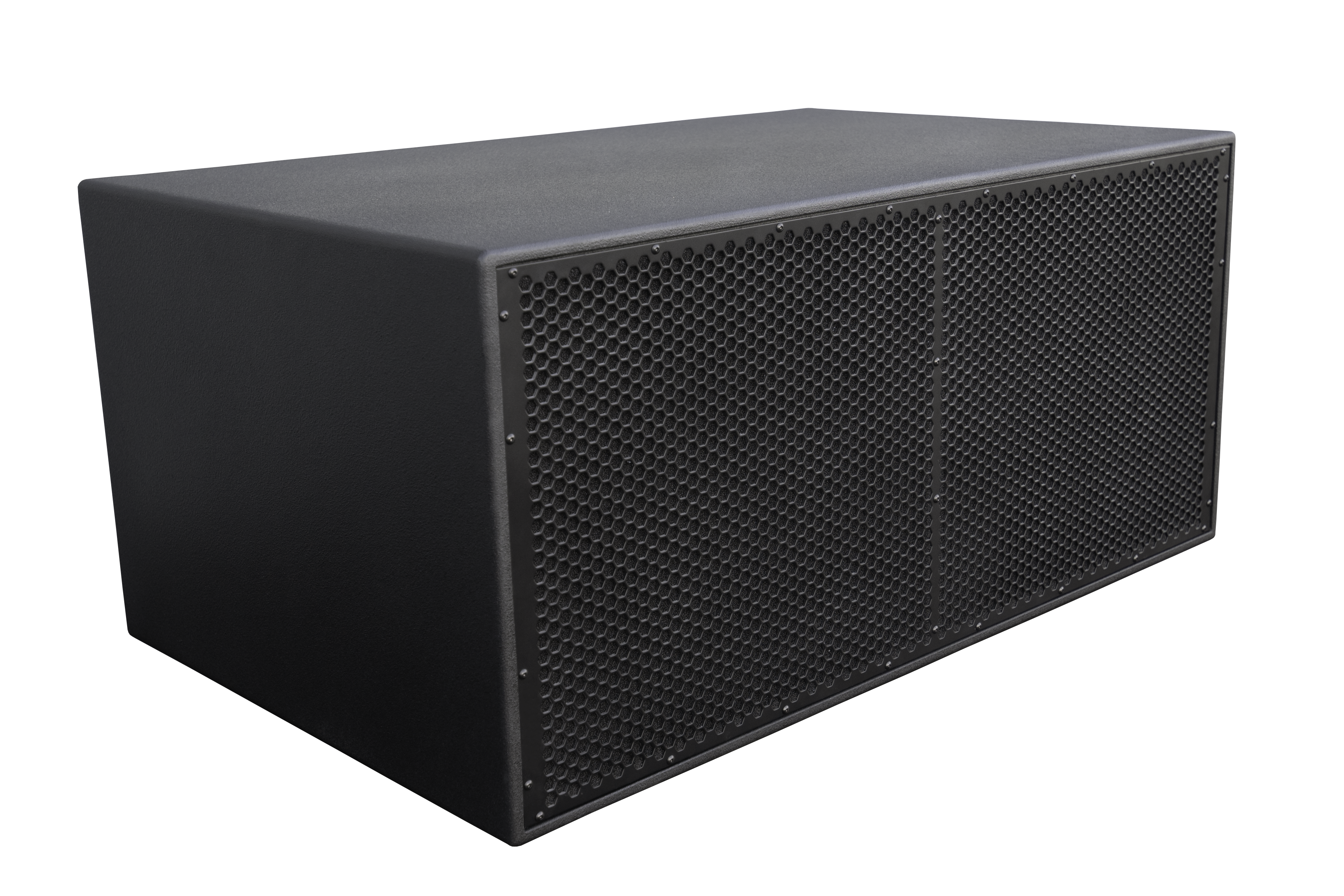

The M218 is a high efficiency, high performance sub-bass loudspeaker with exceptionally high power handling. The M218 features two long excursion, high power handling 18” cone drivers mounted in a mechanically and acoustically optimized bass reflex cabinet with laminar venting. Port turbulence is virtually eliminated and distortion is minimized at high drive levels via a large, flared, symmetrical laminar vent.
The M218 enclosure was designed with both portable use and installation in mind. It features the option of up to 24 integrated fly points and optional array frames that allow for mounting to ceilings and the creation of traditional and cardioid flown arrays. The compact profile allows the M218 to fit easily under stages or up tight to ceilings.

The enclosure is constructed of premium birch hardwood plywood and is coated with a weather and wear resistant urethane hybrid finish. Components in the front of the enclosure are protected by a steel grill made from perforated steel that is coated with heat cured epoxy powder and lined with acoustically transparent foam. All optional rigging components are weather and corrosion protected with a heat cured epoxy powder coated finish.

SPECIFICATIONS

Frequency Range (-10dB): 27Hz – 150Hz, Assumed 100Hz low pass filter 0dB point taken at 60Hz, Unprocessed
Frequency Response (±3dB): 33Hz – 120Hz, Assumed 100Hz low pass filter 0dB taken at 60Hz, Unprocessed

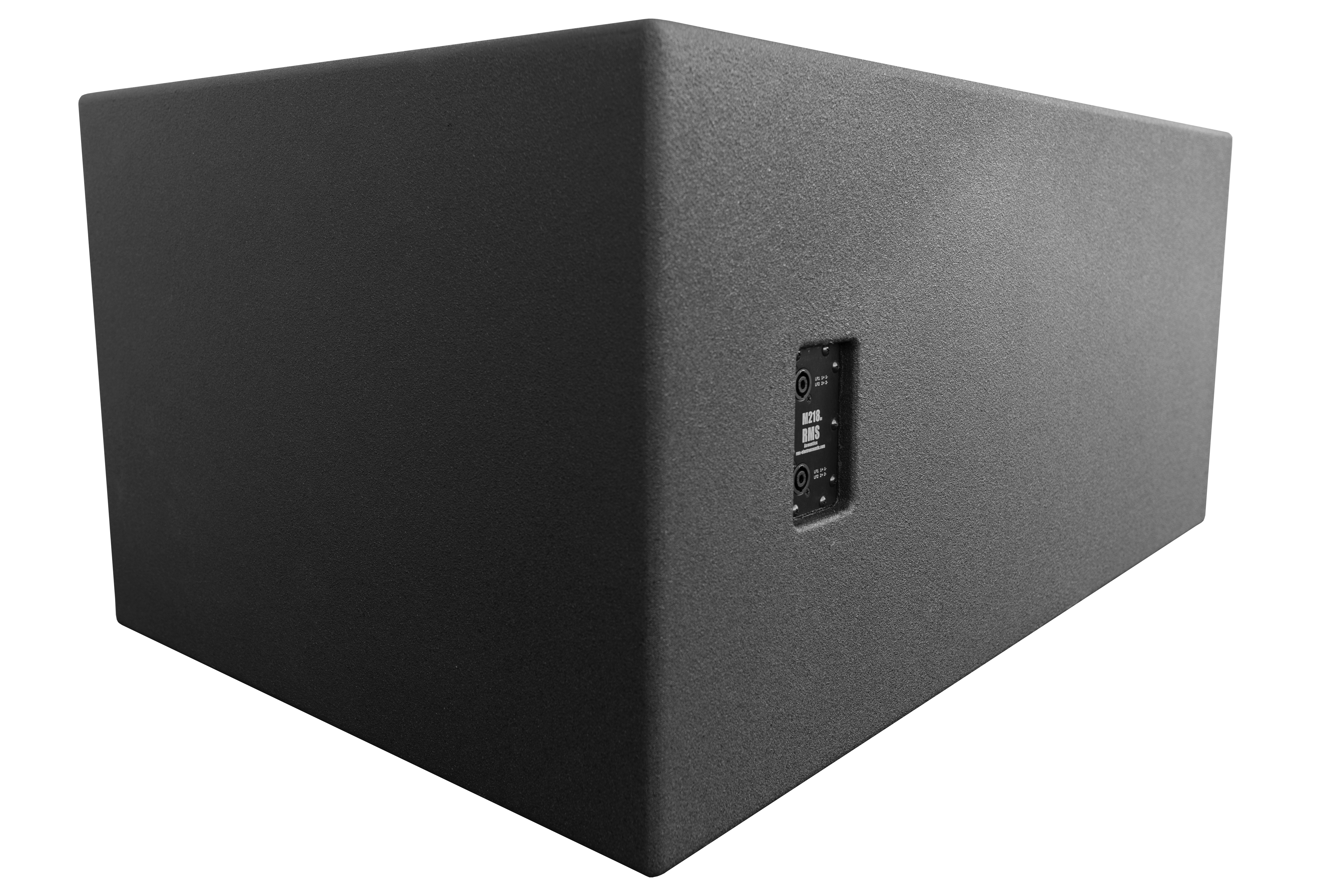

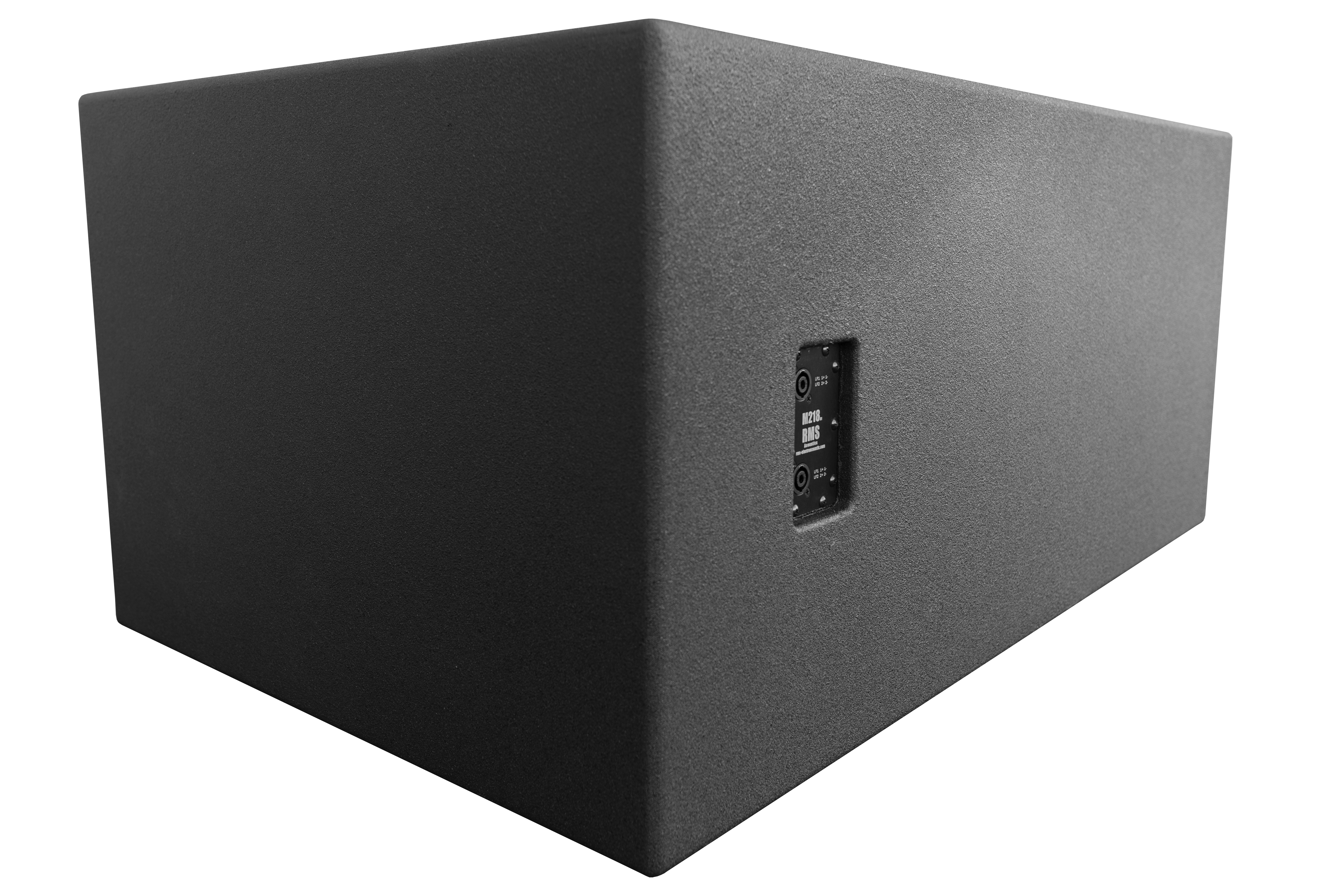

Electrical Input Connectivity: Dual NL4, transducers wired individually, connectors paralleledOptional Phoenix Connector for M218i
Transducer Power Rating (AES) 1500W AES each Transducer, 3000W Peak 2Hr3000W AES Parallel, 6000W Peak 2Hr
Long Term Power Rating (IEC) 1000W Each Transducer, 4000W Peak 100Hr2000W Parallel, 8000W Peak 100Hr
Maximum SPL 27 – 100Hz, 135dB cont. avg, 141dB Peak50-150Hz, 137dB cont. avg, 143dB Peak
Sensitivity (dB SPL, 1W, 1m) 104dB, 60Hz 100dB, 30Hz
Nominal Impedance: 2 8 ohm loudspeakers wired individual, 4 ohm parallel
Low Frequency Driver 2 X 18” weather resistant, long excursion, 4” coil, die cast basket, vented magnet, Aluminum heat sink and demodulating rings
Enclosure Construction Rectangular Cabinet, 15, 16, 18mm Exterior Grade birch plywood
Suspension Attachment M218i 20 (4 Top, 4 Bottom, 4 Back, 4 per side) 3/8-16 threaded brackets
Finish Black Polyurea/ Urethane with aliphatic UV inhibitor
Grill Details Powder Coated 12 Gauge Cold Rolled Steel, Hexagonal Pattern
Dimensions  W X H X D: 47.1  X  21.6  X  29.95 in       1196  X  549  X  761 mm
Net Weight 225 lbs, 102Kg
Ordering Options M218R1, M218R2, M218i, M218F

ACCESSORIES

M218CART1 Welded Aluminum Cart, Holds up to 4 M218.
M218CART2 Welded Aluminum cart, holds 1 M218 on end.
WB-M218R2 Locking wheel board for M218R2. Requires R2 version with catch plates installed.
M218COVER1 Travel cover for 2-high M218 on cart.
M218COVER2 Travel cover for 3-high M218 on cart.
M218COVER3 Travel cover for single M218 on end cart.
M218COVER4 Travel cover for single M218 on face wheel board. Applicable to M218R2 ONLY
M218RS2 Flown vertical installation rigging kit, 2 Box
M218RS3 Flown vertical installation rigging kit, 3 Box
M218RS4 Flown vertical installation rigging kit, 4 Box
M218RS5 Flown vertical installation rigging kit, 5 Box
EYEBOLT4 Kit of (4) 3/8-16 Eye Bolt Kit for M218i

DOWNLOADS

Dimensional Drawing (2D) M218 Dimensional (PDF)
Dimensional Drawing (2D) M218 Dimensional (DWG)
CAD Drawings (2D) M218 2D CAD Files ZIP
CAD Drawings (3D) M218 3D CAD Files ZIP
Sketchup Files (3D) M218 Sketchup Files ZIP
3D Enabled PDF – Single Box M218 Single Box (3D PDF)
3D Enabled PDF – Cardioid Stack 4-High M218 4 STACK CARDIOID (3D PDF)
